Valve Bodies

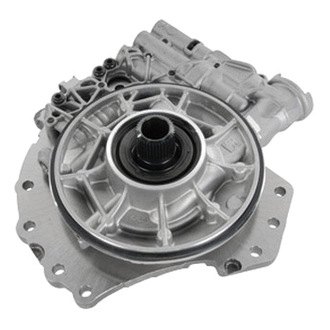

The relentless pursuit of efficiency has created opportunities for electric pumps of many shapes, sizes and performance envelopes.

Low-flow applications, like auxiliary start/stop or clutch engagement have become commonplace.

High-flow applications, such as for gearbox lubrication, cooling electric motors/batteries are rapidly growing.

Ensure OP™ | E is a purpose-built test system designed to characterize and benchmark new electric oil pump prototypes and validate ones at the end of the production line.


Here's a test system that already meets your needs.

Tirelessly compiling OEM test specifications, interpreting and summarizing requirements and defining the perfect test system is time better spent making the perfect electric oil pump.



Accurately measure key parameters for lubrication, cooling, auxiliary, start/stop or actuator pumps.



Simulate various test conditions (i.e. fluid/ambient thermal cycling, aeration, external pressure, etc.) according to industry standards.



Robust fluid conditioning subsystem, engineered for prolonged use between extremes.


Physical Interface

Overflow tank design with manual level adjustment and room for up to six (6) pump-specific fixtures at once.


Comes with an industry-leading National Instruments® data acquisition system, integrated with a Windows Embedded controller.


Designed for international power sources and safety considerations with minimal to no modifications.




ATA Assist™ allows you to submit a request for assistance 24/7.

To ensure the accuracy of your system, we suggest an annual on-site system calibration called ATA Accurate™, which meets the ISO17025 standard accredited by A2LA.

structure copy.jpg


ATA's unique "gull-wing" enclosure allows safe and easy access to the unit-under-test and for essential maintenance activities.

Rapidly cool the pump body and test fluid (by conduction) to -40°C in a quicker, more efficient manner than a thermal chamber.

Aerify™ Measure can accurately measure the gas concentration of oil in real-time. Aerify™ Control can introduce air (up to 30% aerated) to better simulate the environment.

Intelligence comes standard.

Introducing FloInt™

All ATA Ensure™ test systems come with FloINT™ (Flow Intelligence) software, built from the ground up with features specific to testing and analyzing fluid/hydraulic components. We include common electric oil pump test profiles (i.e. dead-headed flow, PTCE), or you can create your own with our easy drag-and-drop interface.


Validation comes in many flavors.

While the measurement and control characteristics of a test system should always remain accurate and precise, some applications require special consideration. Ensure VB™ is available in four variants:

  • VB™| Durability: Designed for robust endurance testing
  • VB™| Performance: Engineered for the most precise measurements
  • VB™| Production: Built for efficient and effective end-of-line validation
  • VB™| Base Model: A system for a specific set of test requirements

Back to the Top


Available with up to six measurement circuits, the Ensure OP™ | DurE is an effective system for thousand-hour tests. It comes pre-loaded with a powered thermal cycle endurance (PTCE) durability test plan, which is complementary to the cold-temperature FlashFreeze™ option.

Durability Testing

E OP|PerE1.png

The Ensure OP™ | PerE is designed to be the precision instrument of your pump validation portfolio. Can be configured with up to six (6) measurement circuits.

It comes standard with:

  • Voltage measurement
  • Current measurement
  • Inlet pressure measurement
  • Circulation heating and cooling
  • CAN/LIN support
  • Serial communications
  • FloINT Scripting Package
  • Stress test plans (i.e. thermal shock)

Performance Testing

E OP|ProE1.png

The Ensure OP™ | ProE is a system that can handle end-of-line functional and audit quality assurance applications with ease.

It comes standard with:

  • Inlet pressure measurement
  • Hydraulic clamping
  • Production package
    • Part identification
    • Stack light
    • Large indicator lights
  • Automated front door
  • FloINT Scripting Package
  • FloINT User Management
  • Database Saving

End of Line Testing

Want to learn more?

Enter your email to receive a datasheet with options and specifcations.
